Quantum QXS-3 Hybrid Storage

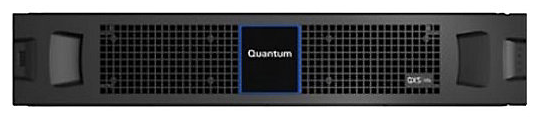

Model QXS-312 With Twelve 3.5” DrivesClick here to jump to more pricing!
Overview:
The QXS™-3 hybrid storage series features next-generation host connection speeds, Q-Tools, Q-Turbo, and high-capacity drives. These models support the following host connection types: 8Gb Fibre Channel, 16Gb Fibre Channel, 12Gb SAS, 1Gb iSCSI, or 10Gb iSCSI.
QXS-3 hybrid storage arrays with data protection are ideal for IT applications such as email, file sharing, and video editing. With the fast host connections, the systems readily support server backup for small virtualized environments and small workgroup video editing.
Manageability is a cornerstone of the QXS-3 Series. Q-Tools includes:
- Thin Provisioning
- Automatic Pooling
- Quick – provides an accelerated rebuild operation as only the sectors that contain actual data are rebuilt, resulting in up to five times faster restoration.
- Q-Turbo – simultaneously writes to both controllers, increasing performance by 50%.
Other optional management tools are:
- Q-Snap – redirect on write snapshots (pointers).
- Q-Replication – asynchronous replication.
- Q-Copy – snapshots.
The QXS-3 Series arrays are easy to manage with the Storage Management Console. You can manage all array functions without the need for host-based software, including the advanced Management Console that saves time with configuration and installation wizards, schedulers, and the administration of Q-Tools data protection software.
| Model QXS-312 (Fibre Channel, ISCSi, SAS) | |
| With Twelve 3.5” Drives | |
| Drives per array | Up to 12 (SSD, SAS, 15K, 7K, Encrypted) |
| Max capacity per chassis | 96TB |
| Expanded Capacity | 384TB |
| Performance | |
| Read | 3.3GB/s |
| Write | 2.4GB/s |
| Physical | |
| Depth (excluding cable) | 20.57in/52.25cm |
| Height | 3.43in/8.71cm |
| Width | 18.99in/48.24cm |
| Chassis weight | 58.2lb/26.9kg |
| Chassis weight with drives | 78.2lb/35.5kg |
| Model QXS-324 (Fibre Channel, ISCSi, SAS) | |
| With Twenty-Four 2.5” Drives | |
| Drives per array | Up to 24 (SSD, SAS, 15K, 7K , Encrypted) |
| Max capacity per chassis | 48TB |
| Expanded Capacity | 192TB |
| Performance | |
| Read | 3.3GB/s |
| Write | 2.4GB/s |
| Physical | |
| Depth (excluding cable) | 20.46in/51.9cm |
| Height | 3.5in/8.9cm |
| Width | 17.6in/44.7cm |
| Chassis weight | 36.4lb/16.5kg |
| Chassis weight with drives | 51.8lb/23.5kg |
Architecture:
QXS-3 Series
Best-in-class Reliability And High Availability
- Dual RAID Controller (Active/Active)
- 2 Ports per Controller for maximum value
- Flexible Interface Options (CNC)
- 8Gb/16Gb FC or 1/10Gb iSCSI
- Easy to Set Up and Use with the RAIDar 2.0 user interface
- Support HDD and SSD Options
- Available with DC Power
- Scale to 96 Drives (SFF) - 3 Expansion JBODs
- Scales up to 384TB
- NEBS-compliant for Telco
- MIL-STD-810F/G
- 2U12, 2U24
- Interface options per system
- - CNC: 4 x 8Gb/16Gb FC or
- - CNC: 4 x 10Gb iSCSI
- 40K Read IOPS
- 3300 MBps Read
- 2400 MBps Write
- EcoStor™: Battery-free protection
- Cache: Low-latency cache mirroring
QXS-4 Series
Best-in-class Price/performance
- Increased Bandwidth & 4 ports per controller
- Hybrid Interface with 16G FC & 10G iSCSI
- Future-Proof for next-gen host interconnect
- Data Management Services (DMS) Support
- WIN 2012, SMI-S Support
- Full Drive Encryption Capable
- Scale to 1.9PB
- NEBS-compliant for Telco
- MIL-STD-810F/G
Form/Fit
- 2U12, 4U56 LFF
- 2U24, 2U48 SFF
- Interface options per system
- - CNC: 8 x 4Gb/8Gb/16Gb FC or
- - CNC: 8 x 1Gb/10Gb iSCSI or
- - 8 x 12Gb SAS or
- - CNC Hybrid: 4 x iSCSI + 4 x FC
Performance
- 100K Read IOPS
- 6400 MBps Read
- 5300 MBps Write
Patented Technology
- EcoStor™: Battery-free protection
- Cache: Low-latency cache mirroring
QXS-6 Series
High Performance
- Increased Bandwidth & 4 ports per controller
- Hybrid Interface with 16G FC & 10G iSCSI
- Future-Proof for next-gen host interconnect
- Data Management Services (DMS) Support
- WIN 2012, SMI-S Support
- Full Drive Encryption Capable
- Scale to 1.9PB
- NEBS-compliant for Telco
- MIL-STD-810F/G
Form/Fit
- 4U56 LFF
- 2U48 SFF
- Interface options per system
- - 8 x 12Gb SAS or
- - CNC Hybrid: 4 x iSCSI + 4 x FC
Performance
- 200K Read IOPS
- 12000 MBps Read
- 5700 MBps Write
Patented Technology
- EcoStor™: Battery-free protection
- Cache: Low-latency cache mirroring
Specifications:
| QXS-3 Hybrid Storage Technical Specifications | |
|---|---|
| Hosts | |
| External Ports | 2 per controller/4 maximum |
| Fibre Channel | |
| Host Speed | 16Gb, 8Gb Fibre Channel |
| Interface Type | SFP+ |
| iSCSI Models | |
| Initiators | 10Gb NIC or 1Gb, 10Gb iSCSI |
| Interface Type | SFP+ |
| SAS | |
| Initiators | 12Gb, 6Gb, SAS 3.0 (Serial-attached SCSI) SAS modules support 8 total host ports with an optional host port expansion cable |
| Interface Type | Mini-SAS HD |
| Expansion Ebods | |
| x12ES (6Gb) | (1 RAID, 3 EBOD), 48 Drives |
| x24ES (6Gb) | (1 RAID, 3 EBOD), 96 Drives |
| High-availability Features | |
| Redundant Hot-Swap Controllers Redundant Hot-Swap Disk, Fans, Power Dual Power Cords Hot Standby Spare Automatic Failover Multi-Path Support |
|
| Protocols And Standards | |
| IP (RFC, 984, 1092) | SCSI-2 and SCSI-3 |
| OpenStack Cinder compatible | |
| Support | |
| Standard Software Warranty | Includes 30 days of 5x9 telephone and email software support |
| Standard Hardware Warranty | Three-year next business day parts replacement. Replacement item shipment targeted for next business day. Customer will perform the replacement and return of the failed item. Parts replacement service available 5x9 via telephone or email. |
| Raid | |
| Levels Supported | 0,1,3,5,6,10, and 50 |
| System Configuration | |
| Cache Memory | 6GB per controller |
| Virtual Disks per System | 32 |
| Volumes per System | 1024 |
| Mirrored Cache | Yes – Q-Turbo |
| Super Capacitor Cache Backup | Yes |
| Cache Backup to Flash | Yes – Non-volatile |
| Management | |
| Interface Types | 10/100/1000 Ethernet, Mini USB |
| Protocols Supported | SNMP, SSL, SSH, SMTP, SMI-S Provider, HTTP(s) |
| Management Software | Q-Tools |
| Remote Diagnostics | |
| Non-Disruptive Updates | |
| Volume Expansion | |
| Compliance And Standards | |
| NEBS Level3, MIL-SPEC 810G IP (RFC, 894, 1092), SCSI-2 and SCSI-3 |
|
| Power Requirements – AC Input | |
| Input Power Requirements | 100-240VAC 50/60Hz |
| Max Input Power | 375W maximum continuous QXS-312 400W maximum continuous QXS-324 |
| Heat Dissipation | 1488BTUs/hour |
| Bronze Rate – High Efficiency | |
| 82 percent @ 20 percent load 86 percent @ 80 percent load 85 percent @ 100 percent load |
|
| Power Requirements – DC Input | |
| Voltage | -39 to -72DC, -48/-60V nominal |
| Max Input Power | 500W maximum continuous |
| Heat Dissipation | 1706 BTUs/hour |
| Temperature And Humidity Ranges | |
| Operating Temperature | 41°F to 104°F (5°C to 40°C) |
| Shipping Temperature | -40°F to 158°F (-40°C to 70°C) Note: Derate 2°C for every km, up to 3000 meters |
| Operating Humidity | 10% to 90% RH @ 104°F (40°C), non-condensing |
| Non-Operating Humidity | Up to 93% RH @ 104°F (40°C), non-condensing |
| Declared Acoustic Noise Levels | |
| Sound Power | LWAd=6,75 B |
| Sound Pressure | LpAm-55dBA |
| Shock And Vibration | |
| Shock, Operational | 3Gs for 10ms, half sine |
| Shock, Non-Operational | 10Gs for 11ms, half sine |
| Vibration, Operation | 5Hz to 500Hz, 0.21 Grms flat spectrum |
| Vibration, Non-Operational | 3-365-3Hz, 1.22 Grms, Z-axis, 0.85 Grms, X- & Y-axis shaped spectrum |
| Regulatory | |
| Safety | UL 60950-1, 2nd edition (United States) CAN/CSA-C22.2 No.60950-1 2nd edition (Canada) EN 60950-1 (European Union) IEC 60950-1 (International) EN 60950-1 (GS Mark, Germany) CCC Mark (China PRC) |
| Electromagnetic Compatibility | |
| Emissions | CFR47 Par 15 Subpart B Class A (United States) ICES-003 Class A (Canada) EN 55022 Class A (EU) EN 300 386 Class A (EU Telco) AS/NZS CISPR 22 Class A (Australia, New Zealand) VCCI Class A (Japan) GOST R 51318.22 Class A (Russia) KN 22 Class A (S. Korea) CMS 13438 Class A (Taiwan) |
| Harmonics | EN 61000-3-2 (EU) |
| Flicker | EN 61000-3-3 (EU) |
| Immunity | EN 55024 (EU) EN 300 386 (EU Telco) GOST R 51318.24 (Russia) KN 24 (S. Korea) |
| RoHS and WEEE | RoHS-6/6 Compliance, China RoHS, WEEE |
| Country Approvals | United States, Canada, European Union (EU), Australia/ New Zealand, Japan, China (PRC), Russia, Mexico, Germany, South Korea, Taiwan, India |
Documentation:
Download the Quantum QXS-3 Hybrid Storage Datasheet (PDF).
