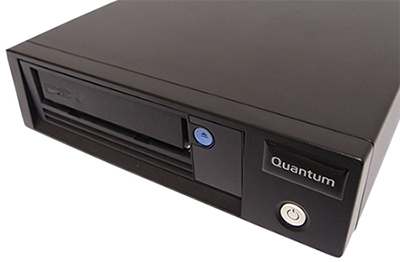

Quantum LTO-4 HH
High Performance. Half the Size. Incredible Value.

Quantum LTO-4 HH

Quantum Products
Quantum LTO-4 HH
USA: FREE Ground ShippingLTO-4 HH, Internal Bare, SCSI, black bezel
#TC-L42AX-BR-B
Call for Pricing!
USA: FREE Ground ShippingLTO-4 HH, Internal Kit, SCSI, black bezel
#TC-L42AX-EY-B
Call for Pricing!
USA: FREE Ground ShippingLTO-4 HH, Tabletop Kit, SCSI, black
#TC-L42BX-EY-B
Call for Pricing!

Click here to jump to more pricing!

Overview:

Quantum’s LTO-4 HH tape drive is a half-height tape drive that offers high capacity, 1.6TB (2:1 compressed) and performance, 576GB/hr (2:1 compressed), all in a space-saving and energy-efficient half-height format. Quantum’s LTO-4 HH tape drive also provides native AES 256-bit hardware data encryption, providing easy-to-enable security to protect the most sensitive data and prevent unauthorized access of tape cartridges. By using LTO-4 encryption, not only is data fully capable of being compressed, therefore maximizing capacity, but encrypted backups are also completed without a loss in performance.

Quantum’s LTO-4 HH tape drives protect your investment by providing backward-read-and-write compatibility with LTO-3 media and backwardread compatibility with LTO-2 media. With ultimate reliability and ease of use in mind, even at a 100% duty cycle, Quantum’s rugged design builds on superior LTO technology and adds advanced features to create a new level of data protection. Quantum’s LTO-4 HH tape drives employ dynamic data rate matching to adjust to the speed of the host, reducing wear-andtear on both drive and media and increasing performance, even on slower hosts. The drive also features an ultra-durable soft-load feature that automatically positions the data cartridge, and the highly reliable leadercapture mechanism virtually eliminates lost leaders, increasing the success of your backup and restore operations.

Quantum’s LTO-4 HH is available in a server-installable internal, convenient tabletop or space-efficient rackmount configuration. Quantum “Backup Ready” certified solutions allow you to go from box to backup in minutes with the highly reliable Quantum LTO-4 HH tape drive and durable Quantum media.

Features & Benefits

  • Capacity - Capacity of 1.6TB – 2X LTO-3 HH.
  • Value - Cost-effective half-height design allows for more attractive price point versus full-height drives.
  • Format/Security - Space-saving half-height format, AES 256-bit native encryption, WORM capability.
  • Compatibility - Investment protection with backwardread/write compatibility to LTO-3 media and backward-read compatibility to LTO-2 media.
  • Warranty - “Backup Ready” Solution with 3-year rapid exchange warranty.

Specifications:


Quantum LTO-4 HH Specifications
Drive Capacity And Performance
Drive Type Interface Cartridge Capacity
Native/Compressed (GB)
Drive Throughput
Native/Compressed (MB/sec)
LTO-4 HH 3GB/sec SAS 800 / 1600 120 / 240
LTO-4 HH Ultra 320 SCSI 800 / 1600 80 / 160
Configurations Internal Bare, Internal Kit, Tabletop Kit and 1U Rackmount
Interface Connector Type 3GB/s SAS: SFF8482 (Internal), SFF8088 (Tabletop and Rack)
Ultra 320 SCSI: HD68 LVDS
Burst Transfer Rate (MB/sec) SAS (max): 550
SCSI (max): 320
Data Rate Matching Range 33 to 80MB/sec native
Data Buffer Size 128MB SCSI
256MB SAS
Tape/Format Compatibility
LTO-4 (read/write) 800GB native capacity
LTO-4 WORM (read/write) 800GB native capacity
LTO-3 (read/write) 400GB native capacity
LTO-3 WORM (read/write) 400GB native capacity
LTO-2 (read/write) 200GB native capacity
Reliability
MTBF (hours) 250,000 @ 100% duty cycle
Load/Unload Life 50,000 cycles
Non-recoverable Error Rate 1 × 1017 bits (non-media error, clean drive)
Physical Specifications
LTO-4 HH SCSI
Form Factor Internal w/o bezel Internal w/ bezel Tabletop 1U Rackmount
Width (in/mm) 5.75 / 146.1 5.88 / 149.3 8.8 / 223.0 19.0 / 483.0
Height (in/mm) 1.63 / 41.7 1.69 / 42.9 3.0 / 77.0 1.75 / 44.4
Length (in/mm) 8.11 / 206.0 8.3 / 211.0 11.7 / 295.0 25.25 / 641.0
Weight (lbs/kg) 3.0 / 1.36 3.09 / 1.4 10.3 / 4.65 20.0 / 9.1
LTO-4 HH SAS
Form Factor Internal w/o bezel Internal w/ bezel Tabletop 1U Rackmount
Width (in/mm) 5.7 / 146.0 5.8 / 148.0 8.4 / 213.0 19.0 / 483.0
Height (in/mm) 1.6 / 41.0 1.7 / 42.7 2.3 / 58.0 1.75 / 44.4
Length (in/mm) 8.1 / 205.0 8.3 / 210.0 13.0 / 332.0 20.0 / 9.1
Weight (lbs/kg) 3.55 / 1.61 3.57 / 1.62 9.4 / 4.3 20.0 / 9.1
Environmental
Operating Temperature °F (°C): 50° to 104° (10° to 40°) @ 5 CFM
Humidity: 20% to 80% (non-condensing)
Altitude (maximum): 13,000 ft (4,000 m
Non-Operating Temperature °F (°C): -40° to 150° (-40° to 66°) excluding media
Humidity: 10% to 95% (non-condensing)
Voltage (V) +5VDC, +12VDC (internal); 100-240 VAC 50/60 Hz (external)
Power Consumption LTO-4 HH SCSI Idle: 8 Watts
Typical: 20 Watts
Peak: 33 Watts
Power Consumption LTO-4 HH SAS Idle: 6.5 Watts
Typical: 24.7 Watts
Peak: 69 Watts
Tape Format Specifications
Recording Format LTO Ultrium 4
Recording Density 13.52KB/mm
Encoding Method 16 Channel PRML
Data Compression ALDC
Compatibility
Operating Systems Microsoft Windows, Sun Solaris, Red Hat Linux, SuSE Linux
Software/Hardware Go to www.quantum.com for the most up-to-date tested solutions
Tape Specifications
Cartridge Dimensions (L×W×H) 4” × 4.15” × .85” (102mm × 105.4mm × 21.5mm)
Archive Storage 30 years
Durability 20,000 load/unload cycles
Warranty
Tape Limited lifetime
Tape Drive 3 years limited with Rapid Exchange

Documentation:

Download the Quantum LTO-4 HH Datasheet (PDF).
